The MCT130 ORP Controller is a microprocessor-based water treatment controller. The controller can be used for pH and ORP control in cooling towers and boilers, and bio-retreatment for bio-lockout control.
The MCT130 ORP controller is a micro‑processor based water‑treatment controller that monitors and controls ORP levels, provides alarm indicators, and supports optional relay outputs and dry contacts. All inputs are fully insulated to eliminate ground loops and interference in industrial environments.

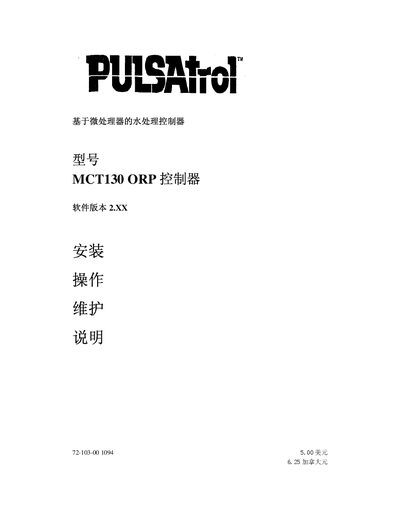

This manual covers the controller’s front‑panel overview, wiring, menu structure, configuration of analog and digital inputs, system calibration, programming parameters, and detailed troubleshooting steps, along with safety and FCC warnings. This manual is written in Chinese.
| Power input | 110/220 VAC @ 100 VA |
|---|---|
| Relay output rating | 600 VA (5 A @115 VAC) per relay |
| Display | 1‑line LCD, 8 characters |
| Operating temperature | 0 °F (‑17.8 °C) to 122 °F (50 °C) |
| Enclosure rating | NEMA 4X, high‑impact PVC |
| Weight | 6 lb (2.7 kg) |
| I/O channels | 1 analog input, 2 digital inputs |
| ORP measurement range | 0 to 1000 mV |
| Factory ORP set point | 870 mV (descending) |
| Limited timer range | 1 min to 24 h (factory default 1.30 h) |
Clean the ORP sensor; if the problem persists, replace the sensor.
The limited timer can be set between 1 minute and 24 hours; the factory default is 1.30 hours.
