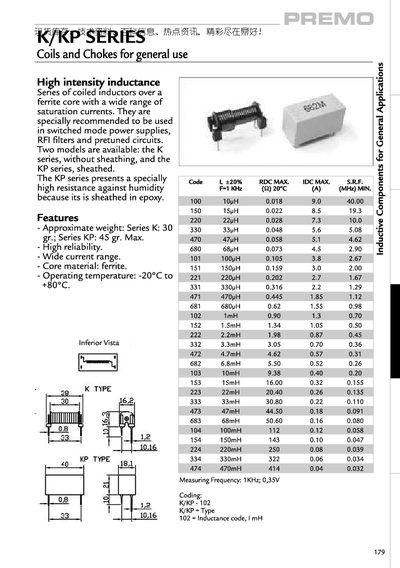

The K/KP series™ includes two models: the K series, which is unsheathed, and the KP series, which is sheathed in epoxy for high humidity resistance. Both are high‑intensity inductance coils designed for switched‑mode power supplies, RFI filters, and pretuned circuits.
The series provides a wide range of inductance values from 10 µH to 68 mH, with corresponding current ratings and SRF values. Features include a ferrite core, operating temperature from –20 °C to +80 °C, and approximate weights of 30 g (K) and 45 g (KP).
| Core material | Ferrite |
|---|---|
| Operating temperature | -20°C to +80°C |
| Approximate weight (K series) | 30 g |
| Humidity resistance (KP series) | High resistance due to epoxy sheath |
The K series is unsheathed, while the KP series is sheathed in epoxy for higher humidity resistance.
They operate from –20 °C up to +80 °C.
Approximately 30 g.
The core material is ferrite.
