QM-ZSD-01 type gas release indicator is used to connect the release interface of gas fire control unit or starter, hang it in an obvious position at the entrance and exit, when the gas fire control device starts, the gas release indicator will flash to display"no entry" and accompany with sound reminder.

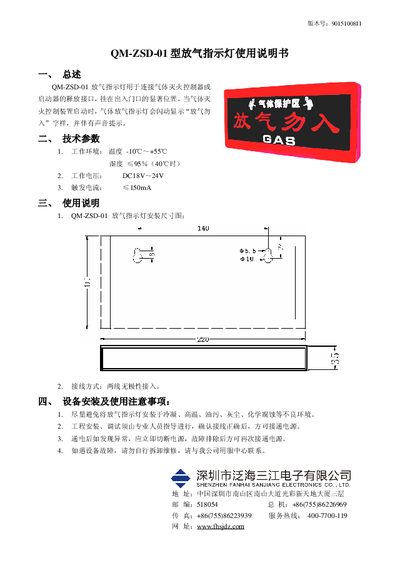

This document describes the QM-ZSD-01 deflate indicator light, its connection to fire control devices, and the visual and audible alerts it provides when gas is detected. It includes technical parameters such as operating temperature, humidity, voltage and current requirements.
Installation dimensions, mounting guidelines, environmental precautions, and troubleshooting steps are detailed. Users are advised to avoid high temperature, oil, chemicals, and to contact the service center for any faults. This manual is written in Chinese.
| Operating Temperature | -10°C to +55°C |
|---|---|
| Operating Voltage | DC 24V |
| Maximum Current | ≤150 mA |
| Mounting Size | 140 mm |
Immediately disconnect the power source, troubleshoot the fault, and reconnect only after the problem is resolved.
Contact the company’s service center using the phone numbers provided in the manual.
