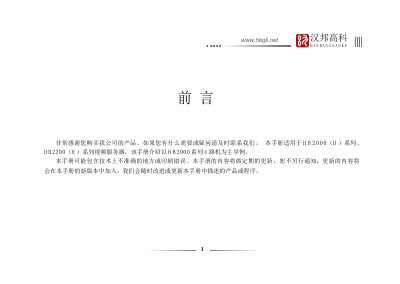

This manual introduces the features, installation, parameter configuration and other content of HB2000 (H) series and HB2200 (H) series video servers of Hanbang High-Tech. It can help users better use this product.
The manual introduces the HB2000 and HB2200 video servers, describing basic operation, parameter settings, safety precautions, and troubleshooting. It provides detailed instructions for video and audio input/output, network configuration, and interface connections.
Additional sections cover power specifications, status indicators, maintenance recommendations, and optional features such as RS485/RS232 communication and Ethernet networking. The document is organized with a table of contents and numbered sections for easy reference. This manual is written in Chinese.
| Supported video formats | CIF, D1, HD1 |
|---|---|
| Audio input level | BNC 1 Vp‑p, 75 Ω |
| Power supply | 12 V DC, 3 A (6 W) |
| Dimensions (W×H×D) | 200 mm × 125 mm × 40 mm |
| Network interface | RJ45 10 M/100 M Ethernet |
| Serial interfaces | RS485, RS232 |
It supports CIF (352×288 or 352×240), D1 (704×576 or 704×480), and HD1 (704×288 or 704×240) formats.
The device requires a 12 V DC power supply at up to 3 A, consuming about 6 W.
The server includes an RJ45 Ethernet port supporting 10 M and 100 M speeds.
Yes, sections 2.3.4 and 2.4 detail the RS485 and RS232 connections.
