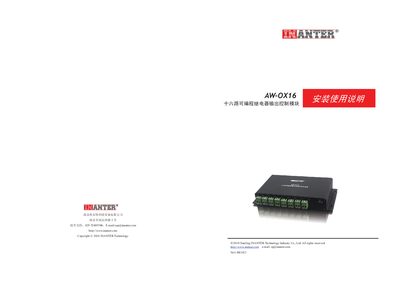

This document is the user manual of AW-OX16. It provides detailed information on the product's features, usage and installation.
The AW‑OX16 is a 16‑channel programmable relay output module designed to work with the AW‑BM1600‑8A alarm host. It receives programming from the host and controls up to 16 relay outputs for various alarm functions.
The guide explains how to connect the module to the host's keyboard bus, wiring diagrams, mounting dimensions, power requirements, and environmental limits, allowing installers to set up up to four modules per host safely. This manual is written in Chinese.
| Number of channels | 16 |
|---|---|
| Working voltage | 12 V DC ±10% |
| Static current | 12 mA |
| Relay output rating | 250 V AC / 7 A |
| Operating temperature | -20°C to 50°C |
| Operating humidity | ≤90% non‑condensing |
| Dimensions | 90 mm × 174 mm × 29 mm |
It provides 16 programmable relay outputs.
The module connects to the alarm host’s keyboard bus, and up to four modules can be attached to a single host.
The module operates from –20 °C to 50 °C.
