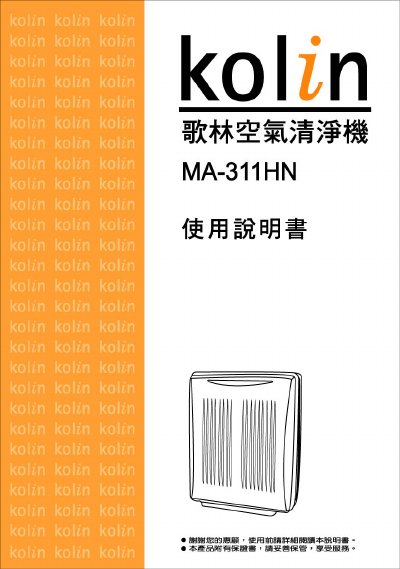

The Kolin MA-311HN air purifier manual begins with safety precautions, warning users about proper use, avoiding modifications, and keeping the device away from water, flammable substances and direct sunlight. It also outlines installation guidelines, including proper placement distance from walls, televisions and other objects.
Further sections describe how to install and replace the HEPA, activated carbon and antibacterial filters, operate the control panel (wind‑speed selection, timer, ion generator), and perform regular maintenance. The document ends with a specification table and service contact information for Kolin Taiwan. This manual is written in Chinese.
| Model | MA-311HN |
|---|---|
| Rated Voltage / Frequency | 110 V / 60 Hz |
| Air Flow (Strong / Medium / Silent) | 2.6 m³/min / 1.5 m³/min / 1 m³/min |
| Power Consumption (W) | 55 W / 34 W / 27 W |
| Noise Level (dB) | 50 dB / 39 dB / 23 dB |
| Applicable Room Area | <12 m² |
| Dimensions (W×D×H) | 400 mm × 150 mm × 450 mm |
| Weight | 4.1 kg |
| Power Cord Length | ≈1.8 m |
Remove the front panel, place the filter in the indicated slot, then re‑attach the panel and ensure you hear a click before powering the unit.
Do not use the device outdoors, avoid modifying or repairing it yourself, keep it away from water, flammable liquids, direct sunlight, and ensure the power cord is not damaged.
Inspect the filter regularly; when the color indicator matches the warning sticker, replace the filter promptly to maintain cleaning efficiency.
The unit measures 400 mm × 150 mm × 450 mm and weighs 4.1 kg.
