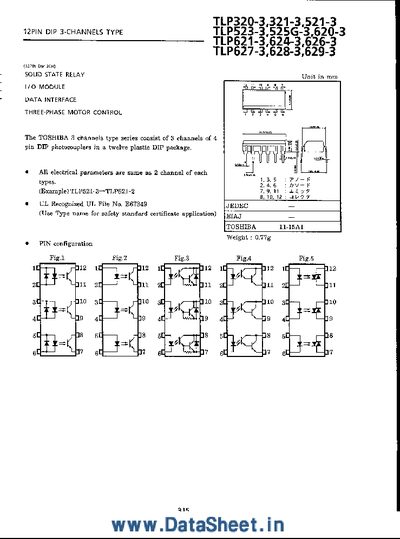

The document provides a concise overview of the Toshiba TLP series solid‑state relays, which are offered in 12‑pin DIP packages with three channels per device. It lists the series members, their isolation voltage ratings, and the type of output (transistor, Darlington, or triac).\n\nA table of specifications details each model’s isolation voltage, feature description, and pin configuration, accompanied by reference figures. The sheet also includes UL certification information and a brief note on the data interface for three‑phase motor control applications.
| Isolation Voltage (TLP320-3, TLP321-3, TLP620-3, TLP621-3, TLP624-3, TLP626-3, TLP627-3, TLP628-3, TLP629-3) | 5000V AC |
|---|---|
| Isolation Voltage (TLP521-3, TLP523-3, TLP525G-3) | 2500V AC |
| Output Type (TLP525G-3) | Triac Output |
The TLP320-3 has an isolation voltage of 5000 V AC.
The TLP525G-3 provides a triac output.
All listed models use a 12‑pin DIP package.
