This document introduces the LED display module products of Dinghao company, including model, chip, absolute maximum ratings, electro-optical data, etc.

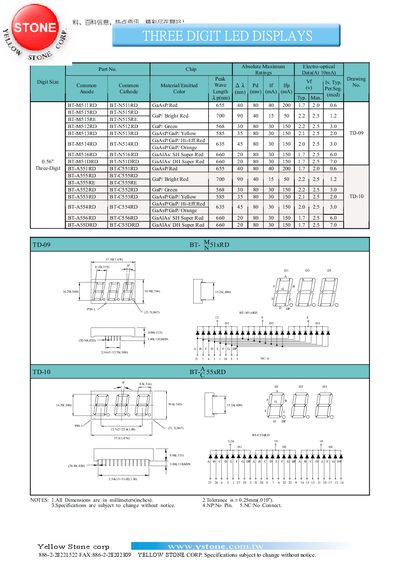

This datasheet lists the specifications of Yellow Stone three‑digit LED display modules. It includes absolute maximum ratings, forward voltage, wavelength, and current limits for red, green, yellow, orange, and super‑red devices.
All mechanical dimensions are given in millimetres (inches) with a tolerance of 0.25 mm (0.010 in). Specifications are subject to change without notice, and the document notes pin designations such as NP (No Pin) and NC (No Connect).
| Wavelength (Red) | 655 nm |
|---|---|
| Wavelength (Green) | 568 nm |
| Wavelength (Yellow) | 585 nm |
| Wavelength (Orange) | 635 nm |
| Wavelength (Super Red) | 660 nm |
| Dimensions units | millimetres (inches) |
| Dimension tolerance | 0.25 mm (0.010 in) |
All dimensions are given in millimetres (inches).
The tolerance is 0.25 mm (0.010 in).
Yes, specifications are subject to change without notice.
NP indicates a No Pin connection.
