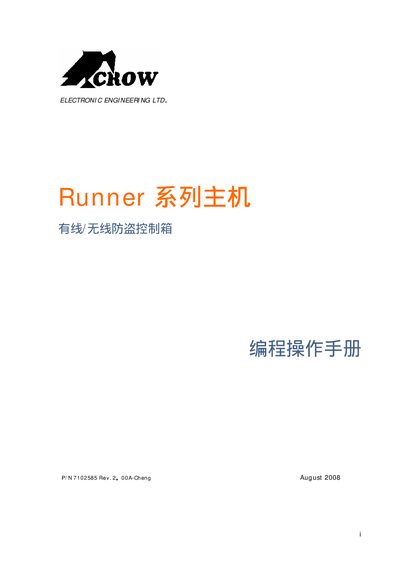

This document is the programming manual for the Runner series host wired/wireless anti-theft control box produced by ELECTRONIC ENGINEERING LTD. It introduces the performance parameters, input/output, accessories, and keyboard display of the host. It also covers programming contents such as password programming, remote control registration and deletion, options and clock settings, output control, partition settings, keyboard operation, key switch, and zone settings.
This manual describes the Runner series security controller, covering system overview, hardware specifications, wiring, and zone configuration. It includes step‑by‑step instructions for installing the main unit, connecting power, and setting up zones and alarms.
Additional sections cover remote control functions, alarm tone programming, power‑supply details, and troubleshooting. Technical parameters such as voltage, current, and environmental limits are listed for reference. This manual is written in Japanese.
| Operating voltage | 230V AC, 50 Hz |
|---|---|
| Transformer rating | 15V AC, 25 VA |
| Battery backup voltage / capacity | 12 V / 1.3 A (max 12 V / 7 Ah) |
| Standby current (controller) | 40 mA |
| Maximum output current (controller) | 300 mA |
| Zone inputs (CP‑428) | 8 zones |
| Zone inputs (CP‑816) | 16 zones |
| Dimensions | ≈300 mm × 320 mm |
| Operating temperature range | 0 °C – 50 °C |
| Storage temperature range | -10 °C – 55 °C |
| Relative humidity (30 °C) | 85 % |
The controller operates at 230 V AC, 50 Hz.
The CP‑428 supports 8 zones.
The standby current is 40 mA.
The controller measures approximately 300 mm by 320 mm.
