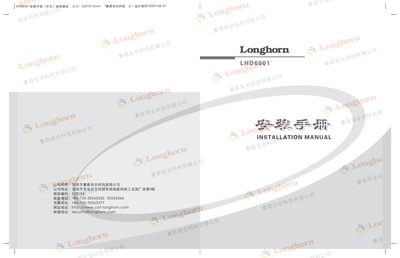

This manual introduces the features, installation methods, usage methods and troubleshooting methods of the burglar alarm controller.
The Longhorn LHD6001 is a telephone‑linked alarm system designed for homes, shops and industrial facilities. It supports up to eight wired zones, dual alarm‑center connections, remote arming/disarming via telephone, and stores up to 200 event records.
The manual provides detailed installation instructions for the control host, power supply, backup battery and optional keyboard, as well as step‑by‑step procedures for telephone programming, zone configuration, and fault troubleshooting. This manual is written in Chinese.
| 控制主机外观尺寸 | 274 mm × 264 mm × 86 mm |
|---|---|
| 工作电压（主机） | AC 220 V |
| 静态工作电流 | 100 mA |
| 工作温度范围 | -10 °C ~ +55 °C |
| 键盘工作电压 | DC 12 V |
| 键盘工作电流 | 30 mA |
| 电源供电能力 | 800 mA total |
The factory default user password is 0808.
The factory default operation password is 1234.
Enter the command “960” after entering the user password to reset all settings except phone numbers and passwords.
