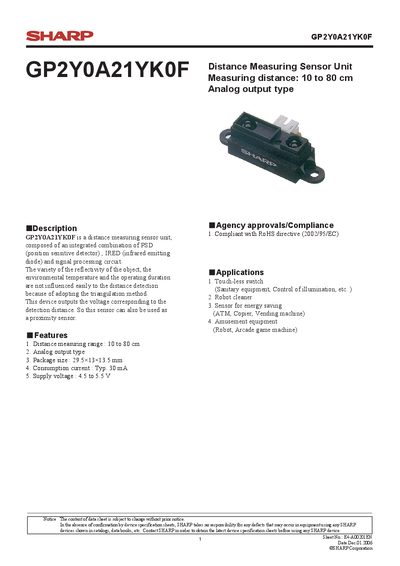

GP2Y0A21YK0F is a distance measuring sensor unit produced by SHARP, with a measuring range of 10 to 80 cm and an analog output function. It is suitable for applications such as sanitary equipment and illumination control.
The GP2Y0A21YK0F is a distance‑measuring sensor unit that combines a position‑sensitive detector, an infrared emitting diode and a signal‑processing circuit. It outputs a voltage proportional to the detected distance and can also be used as a proximity sensor. Typical applications include touch‑less switches, robot cleaners, energy‑saving devices and amusement equipment.
Key electrical characteristics include a supply voltage of 4.5‑5.5 V, typical current consumption of 30 mA, and a measuring range of 10‑80 cm. The device is supplied in a compact 29.5 × 13 × 13.5 mm package and complies with RoHS directives. The datasheet also provides absolute maximum ratings, timing charts, application notes, and packaging information.
| Measuring distance range | 10 to 80 cm |
|---|---|
| Output type | Analog |
| Package size | 29.5 x 13 x 13.5 mm |
| Typical current consumption | 30 mA |
| Supply voltage | 4.5 to 5.5 V |
| Operating temperature | -10 to +60 °C |
| Storage temperature | -40 to +70 °C |
| Typical output voltage at 80 cm | 0.4 V |
The sensor operates from 4.5 V to 5.5 V.
Typical current consumption is 30 mA.
It can measure distances from 10 cm up to 80 cm.
The package measures 29.5 mm × 13 mm × 13.5 mm.
