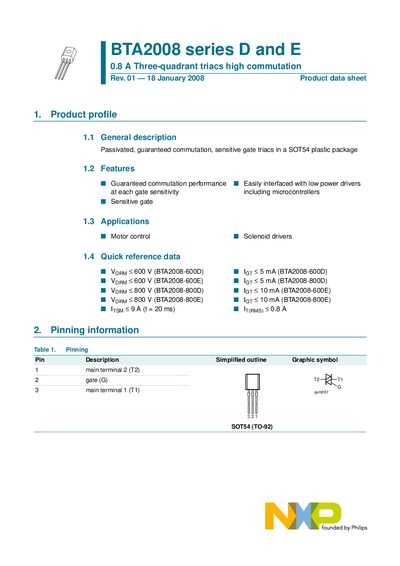

BTA2008 series D and E type 0.8 A three-quadrant triacs high commutation feature guaranteed commutation performance, sensitive gate, easy to interface with low power drivers including microcontrollers, suitable for motor control and solenoid driver.
This datasheet describes the BTA2008 series D and E three‑quadrant triacs, covering general description, features, and typical applications such as motor control and solenoid drivers. It includes detailed electrical limits, thermal data, and dynamic characteristics for the 600 V and 800 V device families.
Key sections include product profile, pinning information, ordering details, limiting values, thermal and static characteristics, dynamic behavior, package outline, revision history, and legal information. Contact and reference URLs are provided for the latest product status.
| Repetitive peak off‑state voltage (Voprm) – 600 V series | < 600 V |
|---|---|
| Repetitive peak off‑state voltage (Voprm) – 800 V series | < 800 V |
| Non‑repetitive peak on‑state current (t = 20 ms) | 9 A |
| Non‑repetitive peak on‑state current (t = 16.7 ms) | 9.9 A |
| Package type | TO‑92 plastic SOT‑54 (3‑lead) package |
The BTA2008‑600 series is rated for a repetitive peak off‑state voltage of less than 600 V.
The device can handle up to 9 A for a 20 ms pulse and up to 9.9 A for a 16.7 ms pulse.
They are supplied in a TO‑92 plastic SOT‑54 package with three leads.
The latest product status information is available on NXP’s website via the provided URL.
