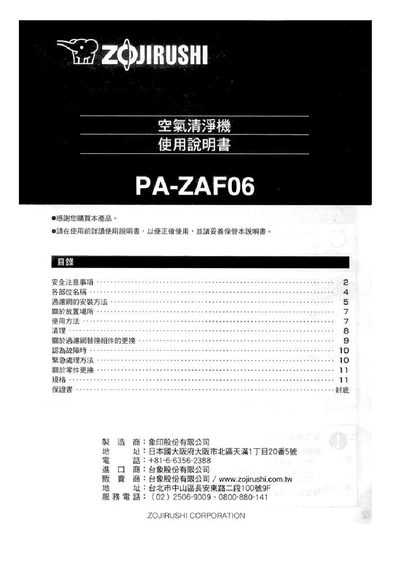

This manual covers safety precautions such as avoiding damaged power cords, keeping the unit away from water, and not inserting foreign objects. It also explains how to install the unit, attach the pre‑filter and activated carbon filter, and replace them when needed.
Operating instructions describe the power switch, fan speed settings, and recommended room size. The specification table lists voltage, power consumption, airflow, dimensions, weight and other key data. Service and warranty sections detail free repair within one year and contact information for Zojirushi service centers in Taiwan. This manual is written in Chinese.
| Voltage | 110V 60Hz |
|---|---|
| Power Consumption | 11 W |
| Air Flow | 6 m³/min (high), 1.3 m³/min (medium), 0.7 m³/min (low) |
| Applicable Floor Area | ≈3 tatami mats (≈10 m²) |
| Power Cord Length | 1.4 m |
| Dimensions (W×D×H) | 24.5 cm × 17 cm × 31 cm |
| Weight | 2.3 kg |
The unit is designed for rooms up to about 3 tatami mats, roughly 10 m² of floor area.
