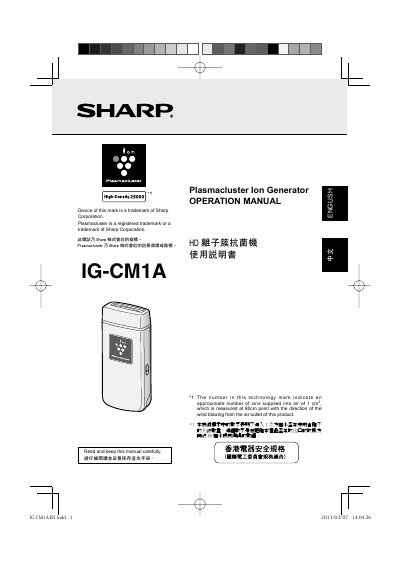

This document is the user manual of IG-CM1A Plasmacluster Ion Generator. This product can generate negative ions, which can purify the air and inhibit the activity of suspended viruses and bacteria.
The IG-CM1A Plasmacluster Ion Generator is a home air‑purifying device that releases high‑density ion clusters to reduce airborne viruses and contaminants. It operates with a rechargeable lithium‑ion battery and includes an AC adapter and USB charging options.
This manual covers important safety precautions, installation procedures, how to operate and stop the unit, regular cleaning and maintenance, specifications of the power supply and battery, and troubleshooting advice for common issues.
| Power input | AC220‑240V, 50/60Hz, 0.3A |
|---|---|
| Power output | DC5V 2A |
| Battery voltage | DC3.7V |
| Battery capacity | 1320 mAh |
| Ion density | ≈ 25,000 ions/cm³ |
| Power consumption | 3.4 W (max, AC adapter) |
| Continuous operating time | ≈ 8 hours at 20 °C |
| Charging time | ≈ 4 h 45 min at 20 °C |
| Dimensions (W×H×D) | 57 mm × 124 mm × 27.5 mm |
| Weight | ≈ 150 g (unit only) |
It should be replaced approximately every 6 years (about 17,500 hours of operation) or the unit will stop after about 6 years and 6 months (19,000 hours) if not replaced.
Charging takes about 4 hours 45 minutes at 20 °C.
The battery provides roughly 8 hours of continuous operation at 20 °C.
