No warranty is provided for the material in this document, and no liability is assumed for errors or incidental or consequential damages resulting from the use of this material. The content of the document is for informational purposes only and is subject to change. The equipment may generate radio frequency energy, which may cause interference to radio communications if not used properly. The equipment has been tested and complies with relevant regulations to reasonably prevent interference in a commercial environment.

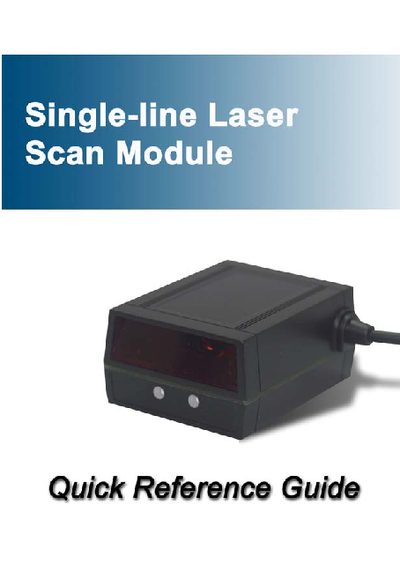

This guide introduces the Single-line laser scan module, covering safety warnings, radio‑frequency compliance, and laser‑hazard precautions. It explains how to unpack the unit, verify contents, and handle the device safely.
The document details the supported interfaces (RS‑232, USB, RS‑485, keyboard wedge), configuration modes, and operating features such as sleep mode, automatic barcode scanning, and indicator LEDs. Technical specifications, troubleshooting tips, and compliance information are also provided.
| Power | 1 watts |
|---|---|
| Input Voltage | 5 VDC ±10% |
| Maximum Operating Current | 200 mA @5 V |
| Operating Temperature | ~45 °C |
| Storage Temperature | -20 °C ~ 60 °C |
| Operating Humidity | 5 % ~ 90 % (no dewing) |
| Static Resistance (Air) | 10 kV |
| Contact Resistance | 8 kV |
| Ambient Light Rejection | 4500 lux (fluorescence) |
| Light Source | 650 nm visible laser diode |
| Scan Pattern | Single line |
| Pitch Angle | 475° |
| Skew Angle | +65° |
| Roll Angle | +40° |
| Depth of Field | 35 mm ~ 215 mm |
| Scan Rate | 500 scans/sec |
| Laser Safety Class | CDRH class IIIa, IEC 60825 class 1 |
| EMC Compliance | CE EN55022, FCC part 15 Class |
It complies with IEC 60825‑1 class 1 and CDRH class IIIa laser safety standards.
The scanner can perform up to 500 scans per second.
It requires a 5 V DC supply and draws up to 200 mA of current.
