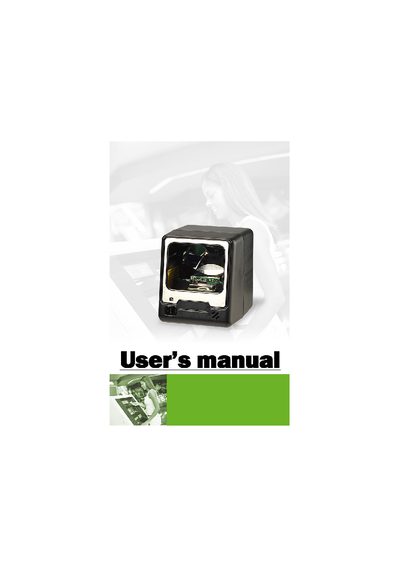

This manual describes the unpacking, mounting, and connection procedures for the Omnidirectional Laser Scan Module, including power setup, host interfacing, and window positioning. It also covers basic operation, LED indications, beep control, and sleep mode handling.
Safety information, laser specifications, and compliance notices are provided, along with detailed troubleshooting steps for common issues such as LED status, motor failure, and communication problems.
| Laser wavelength | 650 nm |
|---|---|
| Radiated power | < 3.9 µW (7 mm aperture, 10 s average) |
| Peak output power | 0.8 mW |
| Scan directions | 5 directions |
| Scan pattern | 20‑line pattern at 1200 scans/s |
| Supported interfaces | Keyboard wedge, RS‑232C, HID USB, wand |
Do not stare directly at the laser, never remove the protective housing, and avoid using optical instruments such as binoculars or microscopes that increase eye hazard.
A red LED can mean the motor is not rotating, the scanner has entered sleep mode, or a safeguard circuit failure; in the latter case disconnect power immediately and contact the dealer.
Check that the correct communication cable is used, verify matching communication settings, and ensure proper handshaking between the scanner and host.
