The Z-2050 series mobile data collector is a product with powerful data collection and processing capabilities. It features ergonomic design, IP54 industrial dust and water resistance, support for Chinese handwriting touch screen, high-performance barcode scanning engine, and more. Additionally, it supports multiple data connection methods and expandable features.
The Z-2050 series is a handheld mobile data collector designed for barcode, QR code and RFID scanning. It features a 160×160 LCD, pen‑touch interface, multiple communication options and a rechargeable lithium battery.

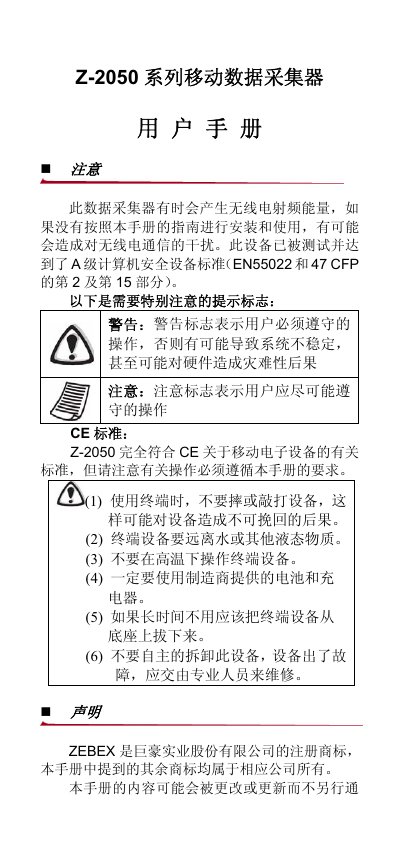

This manual covers safety precautions, unpacking, device overview, power and charging procedures, PC connectivity, scanning operation, sleep mode, display usage, volume control, maintenance, laser safety, system restart, specifications and fault troubleshooting. This manual is written in Chinese.
| CPU | MOTOROLA MC68VZ328 33 MHz |
|---|---|
| RAM | 8 MB |
| ROM | 4 MB Flash |
| Flash Memory | 64 MB NAND |
| LCD | 160 × 160 pixels |
| Battery | 3.7 V, 2200 mAh rechargeable Li‑ion |
| Battery Life (no wireless) | ≥ 8 hours |
| Scanning Speed | 50 scans per second |
| Light Source | 650 nm visible laser diode |
Press and hold the power key together with the background‑light key; the device will restore to factory defaults.
The battery can operate for at least eight hours without wireless communication.
For the first charge, keep the battery charging for at least 12 hours.
