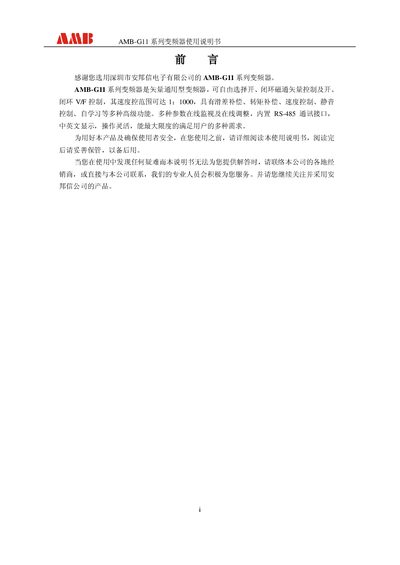

The AMB-G11 series inverter is a general-purpose vector inverter that can freely select open-loop and closed-loop magnetic flux vector control, as well as open-loop and closed-loop V/F control. It has various advanced functions such as slip compensation, torque compensation, speed control, mute control, and self-learning. It supports online monitoring and adjustment of various parameters, has a built-in RS-485 communication interface, and has flexible operation with Chinese and English display, which can meet a variety of user needs.
This manual provides detailed instructions for the AMB‑G11 series variable frequency drive, including safety precautions, product inspection, installation guidelines, wiring diagrams, and control mode settings. It also contains parameter tables, technical specifications, and appendices for advanced functions such as data copy and speed‑control card installation.
The document is organized into chapters that guide users from initial product checks through final commissioning, with emphasis on proper grounding, environmental requirements, and safe handling of internal components. This manual is written in Chinese.
| Model | AMB-G11-5P5T3 |
|---|
For 220 V models use the third‑type grounding, and for 440 V models use special grounding as specified in the manual.
