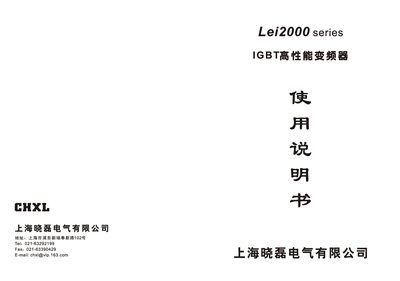

The CHXL Lei2000 series inverter manual provides detailed instructions for safe installation, wiring, and operation of the variable‑frequency drive. It includes safety warnings, wiring diagrams, control‑circuit connections, and a description of the digital control panel.
Technical specifications such as input voltage, output power, frequency range, and maximum motor rating are listed, along with parameter settings, protection functions, and troubleshooting guidance. This manual is written in Chinese.
| Control method | Optimized Space Vector PWM (SPWM) |
|---|---|
| Brake resistor capacity | 150 % for 1 min |
The inverter should be installed in an environment where the temperature is between –10 °C and 40 °C.
At least 12 cm of free space should be left around the unit for proper cooling.
