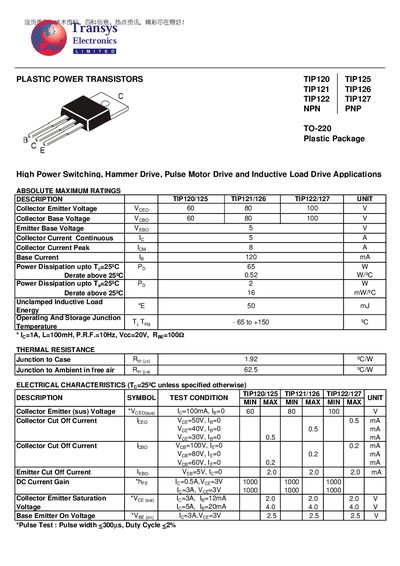

The data sheet lists the maximum ratings, electrical characteristics, thermal resistance, etc. of TIP120, TIP125, TIP121, TIP126, TIP122 and TIP127.
The Transys TIP120 series includes NPN (TIP120, TIP121, TIP122) and PNP (TIP125, TIP126, TIP127) power transistors in a TO‑220 plastic package. They are intended for high‑power switching, hammer‑drive, pulse‑motor drive and inductive‑load applications.
The document lists absolute maximum ratings, detailed electrical and dynamic characteristics, switching times, pin configuration and packaging details such as tube packing and ammo‑pack quantities.
| Collector‑Base Voltage (VCBO) | 60 V (TIP120/121/122) / 80 V (TIP125/126) / 100 V (TIP127) |
|---|---|
| Emitter‑Base Voltage (VEB0) | 5 V |
| Continuous Collector Current (Ic) | 5 A |
| Peak Collector Current (Icm) | 8 A |
| Package Type | TO‑220 plastic package |
| Turn‑on Time (t_on) | 0.4 µs (Ic=3 A, RL=10 Ω) |
| Turn‑off Time (t_off) | 1.2 µs (Vep=5 V) |
All devices are supplied in a TO‑220 plastic package.
