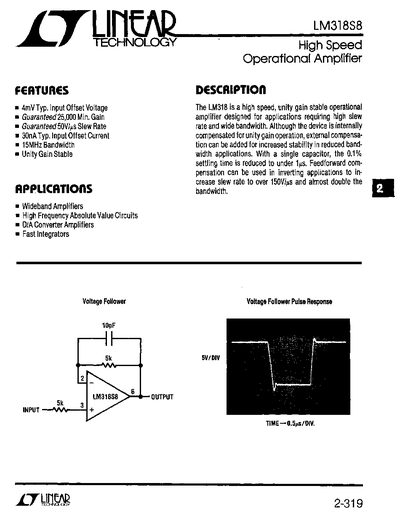

The LM318S8 is a high‑speed, unity‑gain stable operational amplifier designed for applications that require high slew rate and wide bandwidth. It features a typical input offset voltage of 4 mV, a guaranteed slew rate of 50 V/µs, and a 15 MHz bandwidth.
The document provides absolute maximum ratings, package and order information, and detailed electrical characteristics such as input offset current, input bias current, input resistance, gain‑bandwidth product, and power supply requirements.
| Input Offset Voltage | 4‑10 mV |
|---|---|
| Input Offset Current | 30‑200 nA |
| Input Bias Current | 150‑750 nA |
| Input Resistance | 0.6‑3 MΩ |
| Slew Rate | 50 V/µs (typical) |
| Bandwidth | 15 MHz |
| Supply Voltage Range | +5 V to +20 V |
The typical slew rate is 50 V/µs.
It provides a typical bandwidth of 15 MHz.
The device operates from +5 V up to +20 V.
The input offset voltage ranges from 4 mV to 10 mV.
