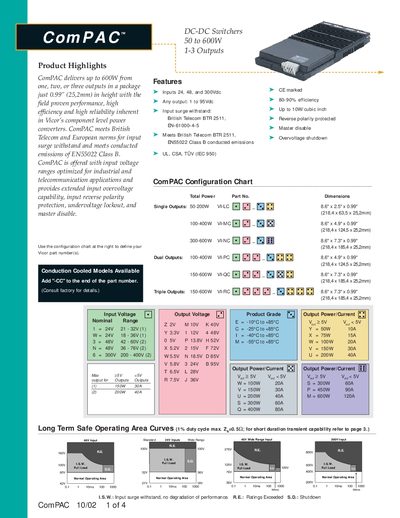

ComPAC is a high efficiency, reliable and compact DC-DC switcher with maximum output power of 600W, supporting 1-3 outputs, input voltage range of 24, 48 and 300Vdc and output voltage of 1 to 95Vdc. ComPAC meets British Telecom and European standards for input surge withstand and meets EN55022 Class B conducted emissions. ComPAC is offered with input voltage ranges optimized for industrial and telecommunication applications and provides extended input overvoltage capability, input reverse polarity protection, undervoltage lockout and master disable.
The ComPAC series from Vicor offers compact DC‑DC switcher modules ranging from 50 W to 600 W, suitable for industrial and telecommunications applications. The modules feature high efficiency, wide input voltage options, and built‑in protections such as over‑voltage shutdown and reverse‑polarity protection.
Key data include 80‑90% efficiency, dimensions of 8.6" × 2.5" × 0.99", weight of 19.2 oz (544 g), and compliance with CE, UL, CSA, and IEC standards. Detailed thermal curves, mechanical drawings, and electrical specifications are provided for design integration.
| Maximum Output Power | 600 W |
|---|---|
| Efficiency | 80‑90 % |
| Dimensions (L × W × H) | 8.6" × 2.5" × 0.99" |
| Input Voltage Range | 24 V – 300 V (depending on model) |
| Input Surge Withstand | IEC 61000‑4‑5 level 2 |
| Certifications | CE marked, UL, CSA, TUV (IEC 950) |
The modules achieve an efficiency of 80‑90 %.
Each module measures 8.6 inches long, 2.5 inches wide, and 0.99 inches high.
The series is CE marked and meets UL, CSA, and TUV (IEC 950) standards.
Input voltages from 24 V up to 300 V are supported, depending on the model.
