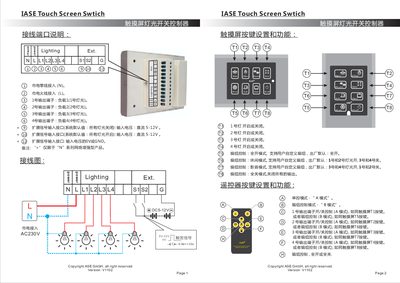

The document is the product manual of IASE Touch Screen Swtich. The product is a touch screen switch with multiple functions, such as All on Soft All off Dark Main Round Spot Effect.
The IASE Touch Screen Switch is a lighting controller with a built‑in touch screen and infrared remote. It can operate four lighting zones (L1‑L4) and supports multiple lighting modes such as full‑on, leisure, and audio‑video.
The manual explains how to connect the device to mains power, wire the output terminals, program custom lighting groups using the touch‑screen buttons (T1‑T8) and K‑buttons, and configure the remote control. It also lists technical specifications, safety features, and default factory settings. This manual is written in Chinese.
| Operating Voltage | AC85V~265V 50/60 Hz |
|---|---|
| Remote Control Method | Infrared (range up to 8 m) |
| Maximum Load (Resistive) | 240 V 5 A |
| Maximum Load (Capacitive/Inductive) | 240 V 2 A |
| Wire Gauge Limit | Maximum 1.5 mm² |
| Short‑Circuit Protection | Built‑in AC240 V 5 A fuse |
| Touch‑screen Life | 1 000 000 presses |
| Relay Life | 100 000 operations |
| Stand‑by Power Consumption | < 2 W |
| Operating Temperature | -10 °C to 60 °C |
| Operating Humidity | < 95 % non‑condensing |
| Storage Temperature | -20 °C to 80 °C |
| Dimensions | 120 mm × 86 mm × 15 mm |
The default factory setting is the full‑open mode, which turns all four lights on.
The infrared remote can control the switch up to about 8 meters away.
It operates on 50 Hz/60 Hz AC mains between 85 V and 265 V.
