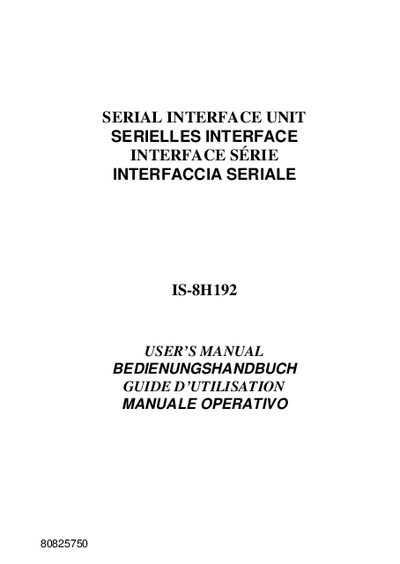

This manual describes the functions and usage of the 80825750 Serial Interface Unit (IS-8H192).
This manual describes the operation of the IS-8H192 serial interface unit, which enables a printer to communicate with a computer via a serial connection. It includes safety notices, FCC and CE compliance information, and a list of required accessories such as a proper serial cable.
The guide covers unpacking, installation steps, DIP‑switch settings, software configuration for Windows and MS‑DOS, and technical specifications. Service and warranty information for Star Micronics customers is provided at the end of the document.
Try reorienting or relocating the receiving antenna, increase the separation between the equipment and the receiver, or connect the equipment to a different circuit.
A shielded cable is required to meet the Federal Noise Interference Standard.
Make sure the printer is unplugged from its AC power source before beginning the installation.
Set the DIP switches on the serial interface unit to the desired settings before installing it.
