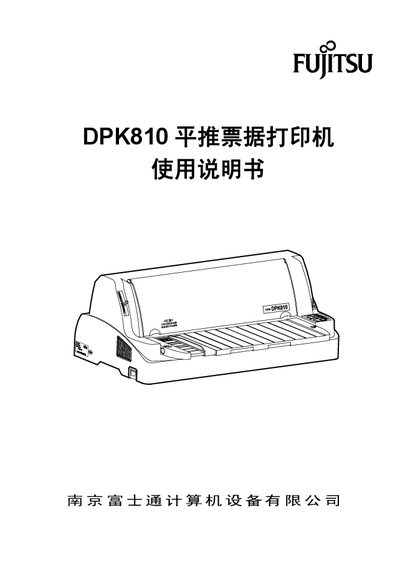

The DPK810 impact receipt printer is a high-performance product that combines printing of receipts, various office documents, and statistical reports. The product uses the GB-18030 Chinese character standard font library.
The DPK810 is a 24‑needle flatbed receipt printer designed for high‑performance printing of receipts, documents, and reports. It features a 0.2 mm needle diameter, 106‑column print width, and fast printing speeds for both Chinese and English characters.
This manual covers safety warnings, installation steps, paper handling, panel operation, software configuration, basic fault troubleshooting, and service support information, including a list of regional service centers and a free hotline. This manual is written in Chinese.
| Needle count | 24 |
|---|---|
| Needle diameter | 0.2 mm |
| Print width | 106 columns |
| Chinese character speed | 225 cps |
| English character speed | 360 cps |
| Maximum copy capability | 7 pages |
| MTBF | 10 000 hours |
| Machine life | 5 million lines |
| Ribbon life | 9 million characters |
| Print head life | 300 million strokes per needle |
The manual marks sections that involve personal injury or machine damage with warning and caution symbols.
You can contact one of the listed regional service centers or call the nationwide free service hotline at 800‑828‑9488.
The printer can print Chinese characters at 225 characters per second and English characters at 360 characters per second.
The mean time between failures is rated at 10 000 hours.
