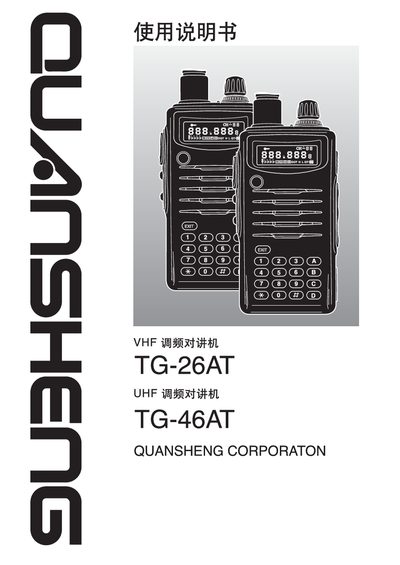

This manual covers the QuanSheng TG-26AT VHF and TG-46AT UHF transceiver models. It includes safety information, installation guidance, and detailed operating procedures.
Key technical data such as frequency ranges, supply voltage, and output power are listed, along with wiring diagrams and performance parameters to help users set up and operate the radios correctly.
| TG-26AT Frequency Range (1) | 136.000–150.000 MHz |
|---|---|
| TG-26AT Frequency Range (2) | 150.000–174.000 MHz |
| TG-46AT Frequency Range (1) | 400.000–420.000 MHz |
| TG-46AT Frequency Range (2) | 450.000–470.000 MHz |
| Supply Voltage | DC 7.2 V (6 A) |
| Maximum Output Power | >300 mW |
The TG-26AT operates in two VHF bands: 136.000–150.000 MHz and 150.000–174.000 MHz.
Both models require a DC supply of 7.2 V with a current capability of up to 6 A.
The radios can deliver more than 300 mW of output power.
