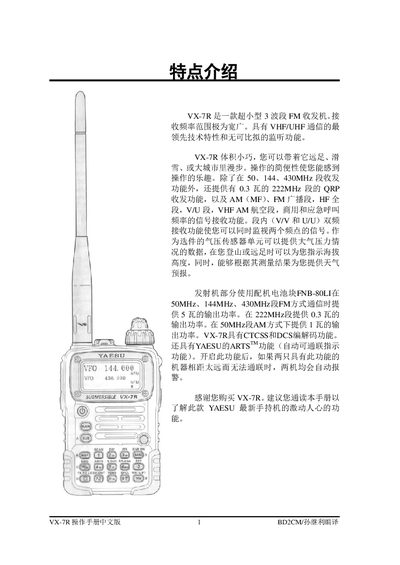

VX-7R is a miniature 3-band FM transceiver with an extremely wide receiving frequency range. It has the most advanced technical features for VHF/UHF communications and unparalleled monitoring capabilities.
This manual provides detailed instructions for using the VX-7R compact FM transceiver, covering its three primary VHF bands (30 MHz, 144 MHz, 430 MHz) as well as additional 222 MHz, 50 MHz AM, and other modes such as CTCSS/DCS and Yaesu ARTSY. It describes the control panel, frequency selection, power settings, and special functions like scanning and timer operations.
Installation guidance includes antenna mounting, belt‑mount accessories, battery installation, and safety precautions. The document also lists optional accessories, spare parts, and troubleshooting tips for reliable field use. This manual is written in Chinese.
| Supported VHF bands | 30 MHz, 144 MHz, 430 MHz |
|---|---|
| Additional 222 MHz band | 0.3 W output |
| 50 MHz AM band output | 1 W |
| Maximum FM output power | 3 W (approx.) |
| CTCSS/DCS capability | Yes |
| Yaesu ARTSY compatibility | Yes |
It receives on 30 MHz, 144 MHz, 430 MHz, plus a 222 MHz QRP band, a 50 MHz AM band, and other modes such as FM, AM, and VU.
The 222 MHz band provides an output power of 0.3 W.
Insert the antenna connector into the antenna socket on the rear of the unit, ensuring it is snug but not overly tight; remove the antenna cap when operating below 50 MHz.
Yes, the device includes CTCSS and DCS tone functions.
