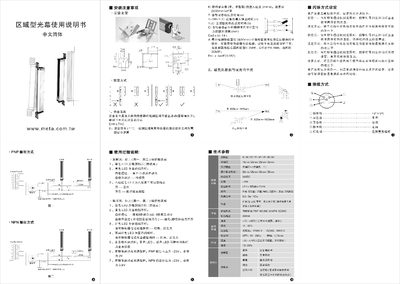

This manual provides installation precautions and safety‑distance calculations for the area‑type light curtain. It describes how to connect the transmitter and receiver, the meaning of the green, yellow and red LEDs, and the PNP/NPN output voltage levels.
Technical parameters such as power supply voltage, power consumption, detection distance, operating temperature and humidity are listed, and three selectable alarm flashing modes are explained with wiring instructions. This manual is written in Chinese.
| Power supply voltage | 24 VDC |
|---|---|
| Detection distance | 0.5‑5 m / 10 m |
| Operating humidity | 15 %‑85 % |
| Output current | 200 mA |
Connect the red and brown wires within five seconds after power‑on to set the desired mode (three modes are available).
