This is a horizontal automatic take-out machine that automatically removes the molded product from the mold and transfers it to the specified location via a conveyor belt.

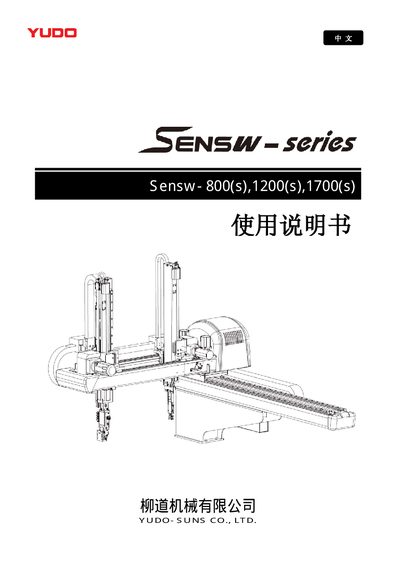

This manual covers the safety precautions, component names, and functional descriptions of the SensW‑800, SensW‑1200 and SensW‑1700 series. It explains how the machine extracts molded parts from molds, transports them, and delivers them to the designated location.
Detailed sections describe routine maintenance, cleaning of components and consumables, air‑circuit diagrams, overall machine checks, and torque settings for fasteners. The document also includes inspection schedules and troubleshooting tips to ensure reliable operation. This manual is written in Japanese.
| Minimum operating ambient temperature | Below 0 °C |
|---|
Operators must not enter the machine work area, must not insert hands or tools into the machine, must ensure proper grounding, and must follow all warning signs.
A periodic inspection schedule is provided in the manual (see the inspection cycle table on page 20).
