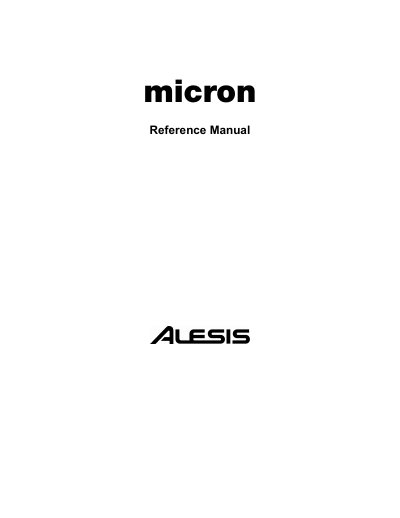

The document is a reference manual for Micron, providing information on its features and how to use it.
This manual guides users through unpacking, power and audio connections, foot‑pedal setup, and basic operation of the Alesis Micron synthesizer. Detailed chapters cover patterns, rhythms, setups, programs, modulation, configuration, and MIDI integration.
Appendices include a comprehensive FAQ, full technical specifications, and warranty/contact information, helping owners troubleshoot and maintain their instrument.
| Polyphonic Voices | 8 voices, each with 3 oscillators, 2 multi‑mode filters, 3 envelope generators, 2 LFOs |
|---|---|
| Audio Input Maximum Level | +5.2 dBu (1.41 VRMS) = -0 dBFS |
| Audio Output Maximum Level | +18 dBu (6.17 VRMS) = -0 dBFS |
| Dimensions (W × H × D) | 22.75" × 2.75" × 7.75" (577.85 × 69.85 × 196.85 mm) |
| Weight | 8.25 lb (3.5 kg) |
Select the desired MIDI channel in the Configuration menu under the “MIDI channel” setting.
Make sure the Micron’s MIDI channel matches the channel on which the program change messages are sent and that the messages are correctly formatted.
Press the [clear pattern] button or use the pattern editing menu to erase the current pattern and begin anew.
It means store protection is enabled; turn off store protect in the Configuration menu before storing changes.
