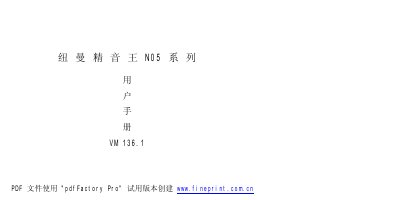

This is a user manual for Neuman Fine King N05 series MP3 player. It supports MP3, WMA, etc. It has a built-in speaker and can play music outside. It supports ID3 and lyrics synchronization display. It supports JPEG format picture browsing. It has a 260,000-color TFT true color LCD screen and can play AVI format movies.
This user manual introduces the Newman N05 MP3 player, describing its main functions such as music, video, image playback, recording, and USB storage. It also lists the device’s physical layout and button functions.
The guide explains how to manage the built‑in lithium‑ion battery, perform basic operations like power on/off, playback control, volume adjustment, EQ settings, and lock key usage. A troubleshooting section addresses common issues such as slow performance, file copying problems, and audio distortion. This manual is written in Chinese.
| Dimensions | 76 mm × 48 mm × 12 mm |
|---|---|
| Display | 2‑inch 260,000‑color TFT (220×176) |
| Audio formats | MP3, WMA |
| Video format | AVI |
| MP3 bitrate | 32–320 Kbps |
| WMA bitrate | 48–320 Kbps |
| Internal storage | 512 MB / 1 GB / 2 GB (varies) |
| Battery | Built‑in lithium‑ion |
| Maximum output power | 10 mW (L) + 10 mW (R) |
| Frequency response | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | ≥85 dB |
| Image format | JPEG |
| Lyric format | LRC |
| Operating temperature | 0 °C – 40 °C |
| Menu languages | Simplified Chinese, Traditional Chinese, English |
Because the internal flash can become fragmented after prolonged use or frequent file deletions; formatting the player resolves the issue.
Early Windows 2000 versions need the appropriate Microsoft patch; after installing it, copying works normally.
