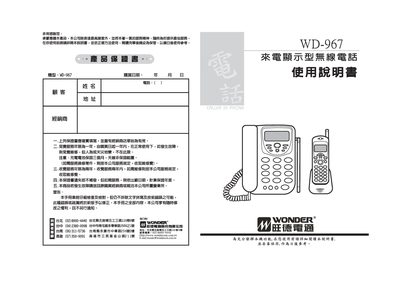

The Wonder WD-967 is a wireless telephone equipped with a caller‑ID LCD display. This manual provides the necessary information to install the handset and its sub‑units, configure regional codes, store frequently called numbers, and adjust display settings.
Detailed instructions cover hardware layout, power requirements, charging procedures, and step‑by‑step operation such as making calls, using the group‑call function, and handling common faults like missing caller‑ID information. This manual is written in Chinese.
| DTMF low‑frequency group | 697/770/785/852/941 Hz |
|---|---|
| DTMF high‑frequency group | 1209/1336/1477 Hz |
| DTMF frequency tolerance | ±1.5 % |
| Main unit transmit frequency | 46.610 ~ 46.970 MHz (10 channels) |
| Sub‑unit transmit frequency | 49.670 ~ 49.970 MHz (10 channels) |
| Transmit power | < 10 mW |
Hold the [Set/Query] key for about 3 seconds, then use the up/down keys to select the desired area code and confirm with the [Set/Query] key.
