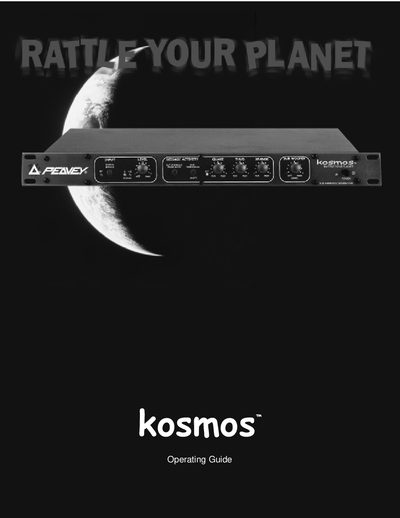

This manual provides instructions on how to use the kosmos ™ device. It also includes information on how to maintain the device, warnings, and precautions.
The Peavey kosmos™ RATTLE YOUR PLANET SUB HARMONIC GENERATOR is a low‑frequency energy and stereo‑image enhancement system that adds sub‑harmonic bass, a bass‑boost circuit and a stereo‑width control. The guide explains safety warnings, control functions, input/output connections, and technical specifications.
Key sections cover global bypass operation, level and bass‑control settings, power requirements, IEC connector details, and the limited warranty provided by Peavey Electronics. The manual also includes frequency‑response data, power consumption, dimensions and weight.
| Signal‑to‑noise ratio | -101 dBu |
|---|---|
| Maximum output level | +22 dBu |
| Power consumption | 8 W @ 120 V RMS 50/60 Hz (US) / 8 W @ 230 V RMS 50/60 Hz (EU) |
| Dimensions (W × H × D) | 483 mm × 44 mm × 229 mm |
| Net weight | 3.22 kg (7.1 lb) |
It disables all functions except the input gain control and the subwoofer level control while still allowing the input circuitry to pass signal.
A standard IEC power connector is provided for the AC mains supply.
