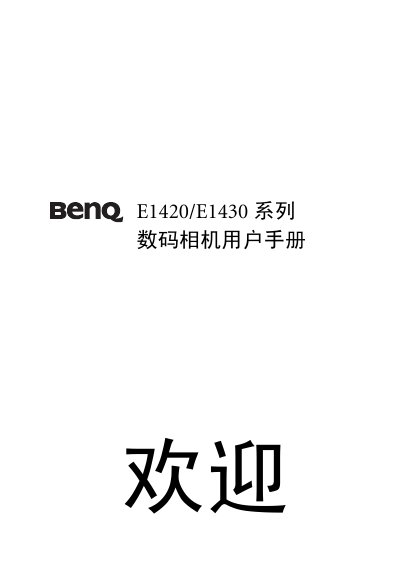

This is the user manual for BenQ Corporation's E1420/E1430 series digital camera. This manual includes instructions for using the product, warranty information, and disposal instructions
This manual introduces the BenQ E1420/E1430 series digital camera, covering safety warnings, proper handling, and the accessories included in the package. It explains how to prepare the camera, charge the battery, insert SD cards, and configure initial settings such as language, date, and time.
The guide then details all shooting functions, including various shooting modes, flash settings, focus options, image size and quality, ISO, white balance, and video recording. It also provides information on connecting the camera to a computer or AV system, using PictBridge, and troubleshooting common issues. This manual is written in Chinese.
| Sensor | Sony 14‑megapixel 1/2.3" CCD |
|---|---|
| Digital Zoom (preview) | Maximum 5× |
| LCD Screen | 3" LCD, 230,000 pixels |
| Image Resolution | 14 MP (4320 × 3240) up to 8 MP |
| Video Mode | HD 720p @30 fps, up to 29 min |
| Battery | 700 mAh Li‑ion rechargeable |
| Storage | Internal ~41 MB, supports 4 GB SD / 32 GB SDHC |
| Dimensions / Weight | 90.1 × 56.8 × 17.2 mm, 110 g (without battery) |
| Interface | USB 2.0 digital output, AV (NTSC/PAL), PictBridge compatible |
It uses a Sony 14‑megapixel 1/2.3‑inch CCD sensor.
Video can be recorded for up to 29 minutes in HD 720p mode.
The camera is powered by a 700 mAh lithium‑ion rechargeable battery.
