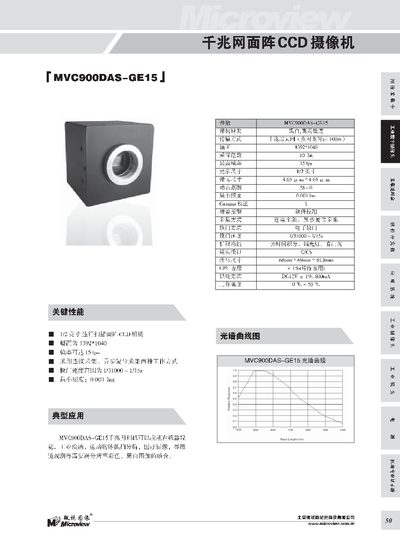

This manual describes the technical specifications of the MVC900DAS‑GE15 giga‑mesh array CCD camcorder, including sensor resolution, frame rate, illumination requirements, and physical dimensions. It also outlines the recommended operating conditions and accessory information.
Key parameters such as the 1393×1040 pixel resolution, 15 fps maximum frame rate, and a minimum illumination of 0.001 lux are listed, along with power consumption of 800 mA and an operating temperature range. The camcorder’s compact size (approximately 6 mm × 69 mm) makes it suitable for various imaging applications. This manual is written in Chinese.
| Resolution | 1393×1040 |
|---|---|
| Maximum Frame Rate | 15 fps |
| Minimum Illumination | 0.001 lux |
| Dimensions | 6 mm × 69 mm |
| Current Consumption | 800 mA |
| Operating Temperature | 0 °C to -30 °C |
The camcorder uses a CCD sensor with a resolution of 1393 × 1040 pixels.
It can capture video at up to 15 frames per second.
The device works down to a minimum illumination of 0.001 lux.
The camcorder measures approximately 6 mm by 69 mm.
