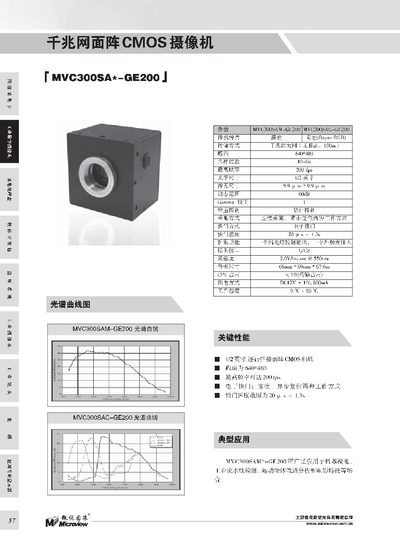

This manual describes the MVC300SA-GE200 CMOS camcorder, featuring a 640×480 Bayer RGB sensor with 10‑bit depth and a maximum frame rate of 200 fps. The device supports multiple control modes and includes a built‑in DC12 V power supply delivering up to 1.8 A.
Physical dimensions are 68 mm × 69 mm × 67.6 mm, and the camera offers a sensitivity of approximately 3.0 V/µs. The manual also outlines the wiring, operation procedures, and performance characteristics for various imaging modes. This manual is written in Chinese.
| Resolution | 640×480 |
|---|---|
| Bit Depth | 10‑bit |
| Maximum Frame Rate | 200 fps |
| Physical Size | 68 mm × 69 mm × 67.6 mm |
| Power Input | DC12 V + 1.8 A |
| Sensitivity | 3.0 V/µs |
The camcorder captures images at a resolution of 640 × 480 pixels.
It can record video at up to 200 frames per second.
The device measures 68 mm × 69 mm × 67.6 mm.
It operates from a DC12 V source with a current draw of up to 1.8 A.
