PPC-1003 10.4″ high luminance liquid crystal low-power Band Resistance Type touch screen pad A0

PPC-1003 is a 10.4-inch high-brightness liquid crystal low-power resistive touch screen tablet computer, powered by a single 12V power adapter, and equipped with an ultra-low-power AMD LX800 processor.

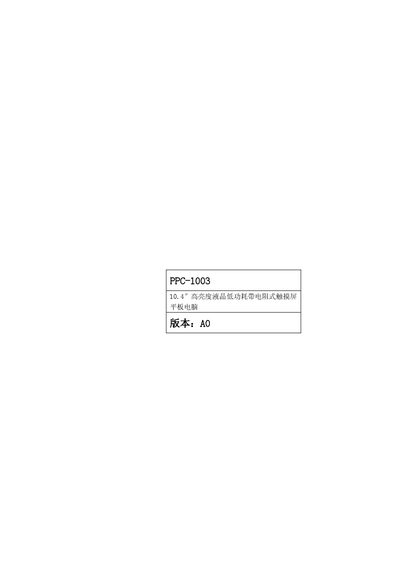

PPC-1003 10.4″ high luminance liquid crystal low-power Band Resistance Type touch screen pad A0 - cover page
Brand
PPC-1003
Category
Tablets
Document type
User Manual
Language
Chinese
Pages
37
File format
PDF
File size
748 KB
Published
23 March, 2012
Updated
01 October, 2023
MD5 checksum
AC08743E792B4657EAA568622A833FE5
PDF
PPC-1003 10.4″ high luminance liquid crystal low-power Band Resistance Type touch screen pad A0 PDF

About this manual

The PPC-1003 is a 10.4" high‑brightness LCD industrial tablet with a resistive touch panel. It is powered by a single 12 V adapter and uses an ultra‑low‑power AMD LX800 processor running at 500 MHz. The front panel is made of aluminum alloy with a painted finish for durability and heat dissipation.

The manual covers safety precautions, hardware interface definitions, BIOS features, and programming guides such as the Watchdog module. Detailed tables list I/O address mapping and IRQ assignments for Windows XP, helping technicians configure and maintain the system safely and efficiently. This manual is written in Chinese.

What's inside

  • Safety Guidelines
  • Product Overview
  • Installation and Mounting
  • Hardware Interface Definitions
  • BIOS Features
  • Watchdog Programming Guide
  • I/O Address Mapping
  • IRQ Assignment Table

Specifications

Display10.4" high‑brightness LCD with resistive touch
ProcessorAMD LX800, 500 MHz
Power Supply12 V adapter
Interfaces3 serial ports, 2 USB 2.0, 1 10/100 M Ethernet, audio, PC104+
Front Panel MaterialAluminum alloy with painted finish
Optional Storage1.8" micro hard drive

Frequently asked questions

What safety precautions should be taken before handling the PPC-1003?

Read the product manual carefully, disconnect power before adding or removing boards, and use an ESD‑protected workstation or anti‑static measures when handling components.

How many USB ports does the PPC-1003 have?

The PPC-1003 provides two USB 2.0 ports.

What processor is used in the PPC-1003?

It uses an AMD LX800 processor running at 500 MHz.

What is the required power supply voltage for the PPC-1003?

The device is powered by a 12 V adapter.
