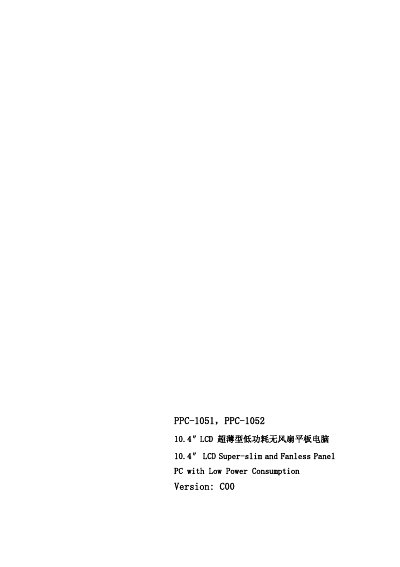

PPC-1051，PPC-1052 is a fanless low power industrial panel pc with 10.4-inch LCD screen. It has beautiful appearance, compact structure and rich I/O interfaces.
The manual introduces the EVOC PPC-1051 and PPC-1052 10.4" fan‑less industrial panel PC, highlighting its Intel® Celeron®‑M 600M processor, Intel® 910GMLE/915GM+ICH6M chipset, up to 2 GB DDRII memory, 10.4" TFT LCD (800×600, 400 cd/m², 500:1 contrast) and a variety of I/O ports including VGA, RJ45, USB 2.0, RS‑232, PS/2 and audio.
It also covers safety precautions (power‑off before handling, ESD protection, proper grounding), transportation and storage requirements, detailed installation procedures for the motherboard, hard disk and external interfaces, and instructions for driver installation via the supplied CD or EVOC website. This manual is written in Chinese.
| Processor | Intel® Celeron®-M 600M |
|---|---|
| Chipset | Intel® 910GMLE/915GM+ICH6M |
| Memory | 1 GB DDRII standard, up to 2 GB |
| Display | 10.4" TFT LCD, 800×600, 400 cd/m² brightness, 500:1 contrast |
| Storage | 2.5" 160 GB SATA HDD, supports CF Type II |
| Audio | On‑board HD Audio with MIC‑in / Speaker‑out |
| External I/O | 1 VGA, 1 RJ45 (10/100 Mbps), 2 USB 2.0, 2 RS‑232, 1 PS/2, audio ports, DC power |
| Power Input | 100‑240 V AC, 50/60 Hz, max 96 W |
| Power Output | +12 V @ 8 A (max) |
| Dimensions | 284 mm × 230 mm × 48 mm (L×W×H) |
| Weight | 3.55 kg |
| Operating Humidity | 10 % – 95 % (non‑condensing) |
| MTBF | ≥ 50 000 h |
| MTTR | ≤ 0.5 h |
The unit accepts 100‑240 V AC at 50/60 Hz, consumes up to 96 W, and provides a +12 V output at up to 8 A.
It comes with 1 GB DDRII memory installed and can be upgraded to a maximum of 2 GB.
