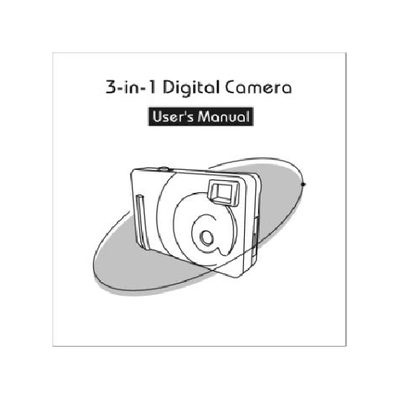

This is a digital camera user manual. It includes camera precautions, technical specifications, computer system requirements, camera description, quick start, camera mode selections, installing the software, downloading still images, downloading movie images, PC camera, etc.
This manual covers essential safety precautions, technical specifications, and system requirements for the 3-in-1 Digital Camera. It also describes the camera's physical layout, battery installation, power control, and mode selection.
Detailed instructions guide users through quick start procedures, image transfer to a PC, and using the camera as a webcam. Software installation notes and driver information are included for Windows operating systems.
| Sensor Resolution | CMOS, 1280 x 1024 pixels |
|---|---|
| Built-in Memory | 8 MB Flash Memory |
| Image Storage Capacity | 1280 x 1024 – 30 images; 640 x 480 – 120 images (with compression) |
| Status LCD | 2‑digit B/W on back for functions |
| Viewfinder | Optical, Reverse Galilean type, 80~85% field ratio, 0.49 magnification |
| Lens | 4 elements in 4 groups, fully coated glass lens |
| Self Timer | 10 seconds |
| File Format | JPEG |
| Movie Format | AVI |
| Battery Type | 3 × AAA alkaline batteries |
| Dimensions | 85.6 × 54 × 23 mm |
| Weight | 50 grams (without battery) |
| Supported Operating Systems | Windows 98/98SE/2000/XP |
Open the battery compartment door, insert three AAA alkaline batteries with the correct polarity, and close the door.
Yes, the camera can function as a PC camera and works with Microsoft NetMeeting software.
