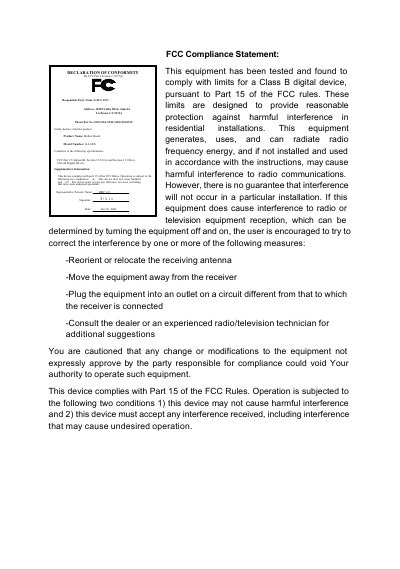

This document provides step‑by‑step installation instructions for the GBT 6RX Socket 370 motherboard, including hardware layout, connector descriptions, and BIOS configuration. It also contains the required FCC compliance statement and safety notices.
Technical details such as supported CPUs, memory types, bus speeds, and expansion slots are listed, along with diagrams of the board layout and wiring references to help users correctly assemble the system.
| CPU socket | Socket 370 |
|---|---|
| System bus speeds | 66/100/133 MHz PCI, 66/100/133 MHz system bus |
| Memory type | 184‑pin DDR DIMM, PC1600 DDR, PC2100 DDR SDRAM |
| IDE ports | 4 IDE bus master ports, up to 8 ATAPI devices |
The device must not cause harmful interference and must accept any interference it receives.
The board uses 184‑pin DDR DIMM modules, supporting PC1600 DDR and PC2100 DDR SDRAM.
Up to eight ATAPI devices can be connected via four IDE bus‑master ports.
