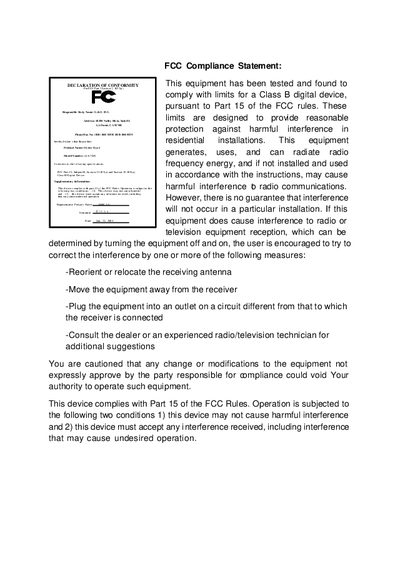

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Move the equipment away from the receiver -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/television technician for additional suggestions You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void Your authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including but not limited to interference that may cause undesired operation of the device.
This guide provides step‑by‑step instructions for installing and configuring the 7DX motherboard. It covers version changes, component layout, CPU socket installation, chipset function blocks, and BIOS configuration.
Additional sections describe testing procedures, power‑management features such as Suspend‑to‑RAM, audio setup for four‑speaker and SPDIF, DDR memory installation, and safety compliance information including FCC interference mitigation measures. This manual is written in Chinese.
| CPU Socket | Socket A |
|---|---|
| Board Revision | REV. 4.0 |
Re‑orient or relocate the receiving antenna, move the equipment away from the receiver, or plug it into a different circuit, and consult a dealer or technician for further help.
The device must not cause harmful interference and must accept any interference it receives, following the conditions of Part 15 of the FCC rules.
