PDS-1202 series 12-inch LCD flat panel display is a high-cost-effective industrial-grade flat panel display, which can be widely used in telecommunications, power, multimedia, defense, industrial automation equipment, manufacturing and other fields as a monitoring device.
The PDS-1202 series is a 12‑inch LCD flat panel designed for industrial use, offering optional touch screen capability and compatibility with panel‑type, wall‑mount, and VESA‑standard brackets. It is intended for monitoring equipment in telecom, power, multimedia, defense, and automation applications.

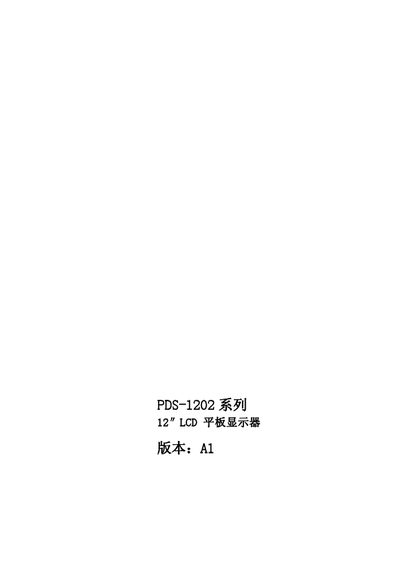

This manual covers safety precautions, proper handling to avoid electrostatic discharge, installation steps, functional control menus, and detailed technical specifications such as dimensions, operating temperature, power consumption, and connector types. This manual is written in Chinese.
| Display size | 12.1 inch (31 cm) |
|---|---|
| Pixel pitch | 0.297 mm × 0.297 mm |
| Input video interfaces | Red, Green, Blue analog |
| Refresh frequency | 60 Hz–75 Hz |
| Maximum resolution | 800 × 600 |
| Color depth | 16.7 M colors |
| Power consumption | 11.5 W (typ.) |
| Input connector | D‑type 15‑pin |
| Operating temperature | 0 °C to +55 °C |
| Storage temperature | -40 °C to +60 °C |
| Weight | 3 kg |
| Overall dimensions | 305 mm × 235 mm × 46.45 mm |
The display can be installed using panel‑type brackets, wall‑mount brackets, or any VESA‑standard support arm.
The display operates correctly from 0 °C up to +55 °C.
