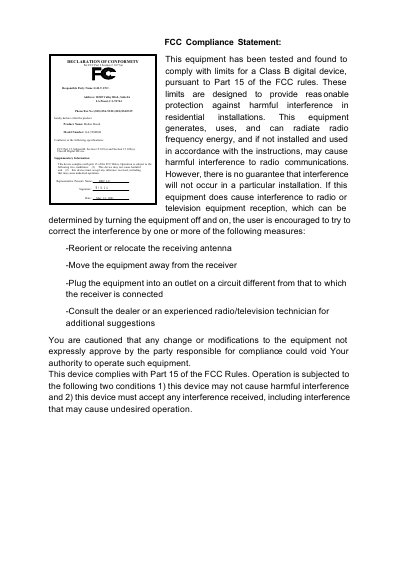

This is a FCC 15 part certification statement, the device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reas onable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Move the equipment away from the receiver -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/television technician for additional suggestions You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void Your authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, includi
This guide explains how to install the 7ZMMH GA-7ZMMH motherboard, including checking package contents, mounting the board, connecting power and peripheral cables, and configuring BIOS settings. It also covers optional features such as Suspend‑to‑RAM, Four‑Speaker/SPDIF audio, and @BIOSTM functions.
The document lists detailed hardware specifications, supported CPUs, memory configurations, expansion slots, audio and video chips, and provides troubleshooting and service‑form procedures. An appendix includes BIOS upgrade instructions and a glossary of technical terms. This manual is written in Chinese.
| Form factor | Micro ATX (24.4 cm × 23.1 cm) |
|---|---|
| CPU socket | AMD Athlon/Duron (K7) Socket A |
| Chipset | Pro Savage KM133A (VT8365A northbridge, VT82C686B southbridge) |
| Memory slots | 2 × 168‑pin DIMM |
| Maximum memory | 1 GB DDR SDRAM |
| Supported memory types | PC‑100/PC‑133 SDRAM and VCM SDRAM (3.3 V) |
| Expansion slots | 1 × AGP (4×, AGP 2.0), 3 × 32‑bit PCI, 1 × AMR, 2 × IDE (UDMA 33/66/100) |
| Audio codec | Creative CT5880 AC’97 codec |
| BIOS | AMI BIOS with 2 Mbit flash memory |
| USB ports | 4 |
The board includes four USB ports.
It uses a Creative CT5880 AC’97 audio codec.
