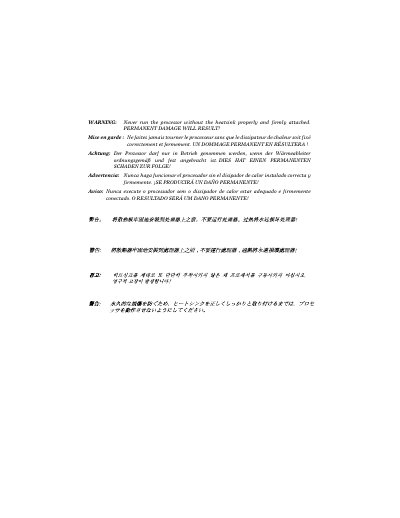

Warning: Never run the processor without the heatsink properly and firmly attached. PERMANENT DAMAGE WILL RESULT!
This guide provides step‑by‑step instructions for installing the GA‑7ZM motherboard, including required heatsink attachment, BIOS setup, and driver installation. It also contains regulatory compliance statements and safety warnings to prevent permanent damage to the processor.
The document lists detailed hardware specifications such as the AMD Athlon (K7) Socket A CPU, VT8363 memory/AGP/PCI controller, and supported memory types, as well as BIOS flashing procedures and audio driver installation for AC’97 devices.
| CPU Socket | Socket A |
|---|---|
| Memory Controller | VT8363 Memory/AGP/PCI Controller (PAC) |
| Super‑I/O Controller | VT82C686A PCI Super‑I/O Integrated Peripheral Controller |
| Supported Memory Types | PC‑100 / PC‑133 SDRAM, VCM SDRAM, 1.5 GB DRAM |
| AGP Version | AGP 2.0 compliant |
| DIMM Slots | 3‑168‑pin DIMM |
The processor must never be run without the heatsink properly and firmly attached.
AWDFlash.exe and AMIFlash.exe are listed as BIOS flashing utilities.
An AC’97 audio driver is supplied for the motherboard.
