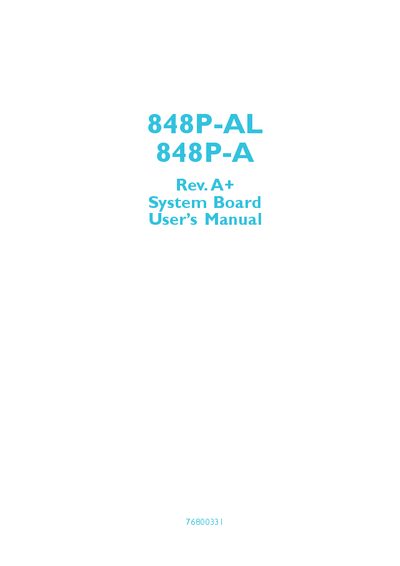

This document is the user manual for the 848P-AL 848P-A Rev. A+ system board, containing copyrighted information. The document is provided for informational purposes only, and the manufacturer disclaims any express or implied warranties of merchantability or fitness for any particular purpose.
This manual covers safety precautions, battery handling, FCC compliance, and general usage guidelines for the 848P-AL and 848P-A system boards. It explains how to install the board, configure BIOS settings, and connect peripherals such as hard drives, printers, and serial devices.
Detailed sections describe the board layout, supported processors, memory types, AGP and PCI slots, audio codec, and power‑management features. Troubleshooting checklists and BIOS update procedures help resolve common issues and ensure reliable operation.
| Supported processors | Intel Pentium 4 (Hyper‑Threading), Pentium 4 Northwood, Celeron Northwood |
|---|---|
| Memory sockets | Two 184‑pin DDR DIMM sockets, up to 2 GB total |
| Maximum memory | 2 GB system memory |
| Audio codec | C‑Media CMI9739a 6‑channel codec, 20‑bit stereo full‑duplex |
Unplug the power cord before removing the system chassis cover, and reconnect it only after installation or servicing is complete.
Try reorienting or relocating the receiving antenna, increase the separation between the equipment and the receiver, or connect the equipment to a different circuit.
Replace the battery only with the same or an equivalent type recommended by the manufacturer.
