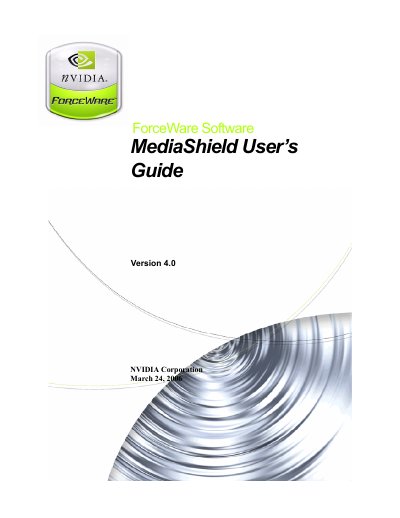

NVIDIA MediaShield User Manual

This document is the NVIDIA Corporation's ForceWare Software MediaShield User's Guide, which describes the features and usage of MediaShield software version 4.0.

Brand: ForceWare
Document type: User Manual
Language: English
Pages: 159
File format: PDF
File size: 6.1 MB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 5C6D572F29DD4D506395C6C32D715110
PDF: NVIDIA MediaShield User Manual PDF

About this manual

This guide covers system requirements, supported NVIDIA nForce chipsets, and compatible Windows operating systems. It describes the RAID levels (0, 1, 0+1, 5, JBOD) that MediaShield can manage and provides step‑by‑step instructions for setting up both bootable and non‑bootable RAID configurations.

The manual also details the MediaShield RAID Management Utility, includes a FAQ section, and offers application notes for driver installation, BIOS configuration, and creating bootable CD images for Windows installations.

What's inside

System Requirements
Supported NVIDIA nForce Chipsets
Supported Operating Systems
RAID Array Types
Installation and Setup
RAID Management Utility
Frequently Asked Questions
Application Notes

Specifications

Supported nForce chipset	nForce 590 SLI
Supported operating system	Windows XP Professional
Supported RAID level	RAID 5 (select boards only)

Frequently asked questions

Which operating systems are compatible with MediaShield?

MediaShield works with Windows XP Home Edition, Windows XP Professional Edition, Windows 2000 Professional, and Windows Server 2003.
