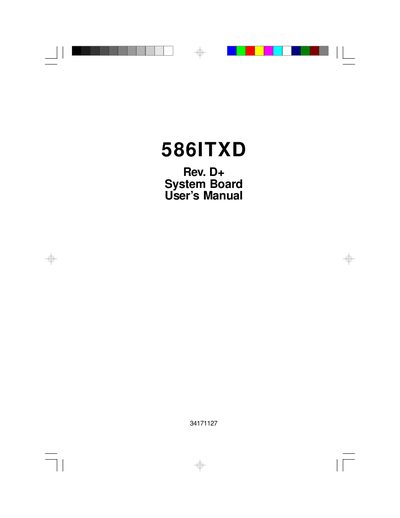

586ITXD Rev. D+ System Board User's Manual
This manual covers the features and specifications of the 586ITXD system board, including supported processors, memory configurations, chipset details, BIOS options, power‑management functions, and I/O interfaces. It also contains step‑by‑step installation instructions, cable‑connection guidance, and a comprehensive troubleshooting checklist.
The document is organized into chapters such as Introduction, Award BIOS Setup Utility, Upgrade Guide, Installation Instructions, Supported Software, Connecting Cables, System Board Layout, DIM and SIM Modules, and Troubleshooting. Each section provides detailed tables, configuration settings, and safety notices to help users install, configure, and maintain the board safely and efficiently.
| Chipset | Intel 82430TX PCIset |
|---|---|
| Memory capacity | 8 MB to 256 MB (2 DIMM + 4 SIMM sockets) |
| Cache | 512 KB pipeline burst, direct‑map write‑back |
| USB ports | 2 |
| Expansion slots | 3 PCI, 3 ISA, 1 shared PCI/ISA |
The board includes two USB ports for connecting peripherals.
It has three dedicated PCI slots, three dedicated 16‑bit ISA slots, and one shared PCI/ISA slot.
The board can handle up to 256 MB of RAM using two DIMM and four SIMM sockets.
