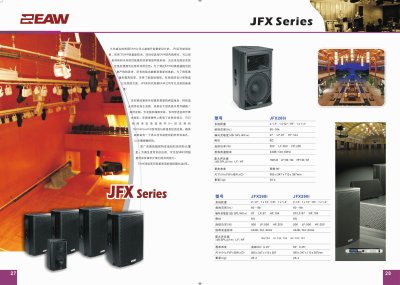

The JFX series from EAW is a compact two‑way loudspeaker system designed for both fixed and portable installations. It features an asymmetric cabinet, a new magnet structure, and a range of mounting options including brackets and a cup‑shaped pole mount.
The manual lists detailed specifications for each model (e.g., JFX200i, JFX260i, JFX590i) such as frequency response, sensitivity, impedance, power handling, dimensions, weight and maximum SPL, and notes a six‑year warranty for the series. This manual is written in Chinese.
| Frequency response | 60‑16 kHz (most models) |
|---|---|
| Sensitivity | LF: 97 dB SPL/1 W/1 m, HF: 104 dB SPL/1 W/1 m |
| Continuous power | 500 W LF, 200 W HF |
| Recommended high‑pass frequency | 60 Hz |
| Dimensions (HxWxD) | 565 × 347 × 387 mm |
| Weight | 26.4 kg |
| Maximum SPL | 130 dB SPL @ 1 m (LF), 124 dB SPL @ 1 m (HF) |
| Warranty period | 6 years |
EAW provides a six‑year warranty for the JFX series.
The manual recommends a high‑pass frequency of 60 Hz.
The JFX200i measures 565 mm high, 347 mm wide, and 387 mm deep.
