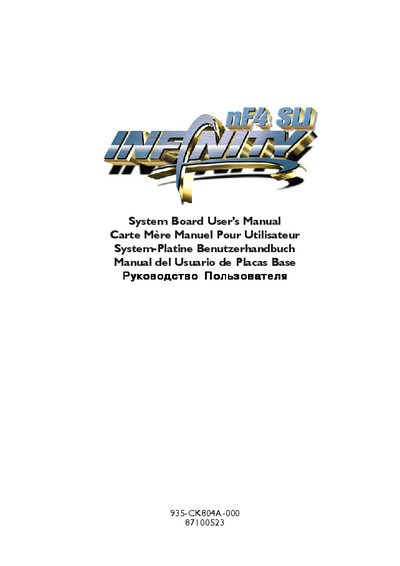

INFINTY nF4 SLI Manual(1)

This document is a user's manual for a system board, providing information on how to use and the features of the system board.

Brand: INFINTY
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 1.5 MB
Published: 22 March, 2012
Updated: 29 September, 2023
Model: NF4
MD5 checksum: 690F3D1C66136F24EEA82D4405B75C23
PDF: INFINTY nF4 SLI Manual(1) PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring the nForce4 SLI system board. It includes a quick‑setup guide, memory installation rules, jumper settings, USB power selection, and a description of the rear panel connectors.

The document also contains safety notices, FCC compliance information, and detailed specifications such as required power‑source ratings and physical dimensions of the board.

What's inside

Quick Setup Guide
System Board Layout
System Memory
Memory Usage Notes
Jumpers
USB Power Select
Rear Panel I/O Ports

Specifications

Supported memory channels	Dual‑channel DDR2/DDR3/DDR4
Maximum supported DIMM slots	4 DIMM sockets
Rear panel USB connectors	4 USB 2.0/1.1 ports

Frequently asked questions

Can the system board boot with three DIMMs installed?

No. The board will fail to boot when three DIMMs are used because the memory controller cannot correctly distinguish channels.

How many USB ports are available on the rear panel?

There are four USB 2.0/1.1 ports on the rear panel.

What is the recommended memory configuration for dual‑channel operation?

Install matching DIMMs on each channel; identical DIMMs are recommended for optimal performance.
