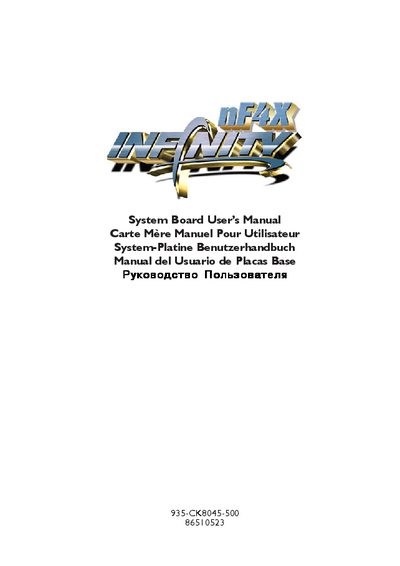

INFINITV NF4 motherboard Manual

This manual introduces the functions and usage of 935-CK8045-500 system board.

Brand: INFINITV
Category: Motherboard
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 1 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: NF4
MD5 checksum: 44B4A4B50EF19881933F7294BE85DB4E
PDF: INFINITV NF4 motherboard Manual PDF

About this manual

This manual provides a quick‑setup guide for the 935‑CK8045‑500 system board, including board layout, jumper settings, USB power selection, memory installation, and front‑panel connectors. Safety cautions and FCC compliance notes are also included.

Detailed sections describe rear‑panel I/O ports, LED indicators, power connector specifications, and recommended power‑supply ratings to ensure reliable operation of the motherboard.

What's inside

Quick Setup Guide
System Board Layout
Jumpers and CMOS Clear
USB Power Select
System Memory Installation
Rear Panel I/O Ports
LED Indicators
Front Panel Connectors
Power Supply Recommendations

Specifications

Minimum power‑supply rating	400 W
5VSB power source current	22 A
SVSB power source current (2 USB ports)	21.5 A
5YSB power source current	2720 mA

Frequently asked questions

What power supply is required for this motherboard?

A power supply of at least 400 W is recommended to provide adequate power for all rails.

How do I clear the CMOS on the board?

Set the Clear CMOS jumper to the 1‑2 position (On) as shown in the jumper settings.
